Thermal loads

In thermal studies and coupled studies, you can use the Thermal Loads group→Temperature command to study the gradient thermal conditions when a fixed temperature is applied continuously at equilibrium.

Use the Temperature load command when:

• You want to apply different temperature loads.

• You want to apply a temperature load to selected entities or to an entire body.

• The time it takes to reach thermal equilibrium is not what you want to study.

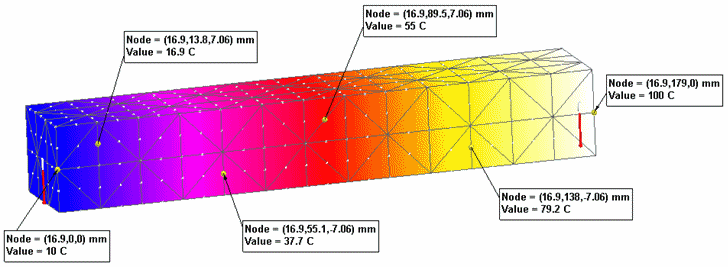

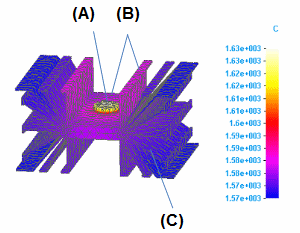

A constant temperature can result in an inflow of heat into the model when adjacent nodes have a lower temperature. It can lead to an outflow of heat from the model when adjacent nodes have a higher temperature.

• Geometry—You can select one or more features, faces, edges, corners, and points. In assembly models, you also can select bodies. In frame models, you can select nodes and curves. You can apply the load to entities of the same type, to mixed entities, and to entities that have other loads applied to them.



• Value—Use the dynamic input box to specify a temperature. The default units are degrees Fahrenheit or Celsius. Zero and negative values are allowed.

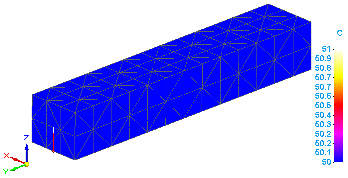

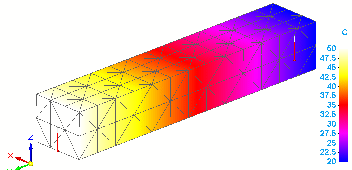

• Load distribution—The temperature load value is not distributed. If you select multiple entities, the temperature that you specify is applied to each of the selected entities.

  Example:

  If you select two faces and enter a temperature value of 100 degrees, then a 100 degree load is applied to each face.

Use the Heat Flux load command to measure the rate at which thermal energy is transferred through a unit area (surface, curve, edge, node, or point). The Heat Flux command defines a heat power, heat generation, or heat transfer load.

• Geometry—In part and sheet metal, you can select faces, surfaces, edges, corners, points, or features. If you select multiple entities, they must be of the same type. In a frame model, you can select the lines representing the beams.

• Load distribution—You can select the Total Load option on the command bar to divide the load value among the entities, instead of applying the total load value to each entity.

• Value—Use the dynamic input box to specify the heat flux value and unit (heat power/unit area). For total loads, the default units are W. For distributed loads, the units are based on the entity type you select:

  Entity	Total	Distributed
  Point	W (Watt)	W
  Edge	W	W/m
  Face	W	W/m²
  Feature	W	W/m²

  A positive value indicates heat entering the model entity. A negative value indicates heat exiting the model entity.

Example:

A heat flux load is applied to the brake pad surfaces on both sides of this model of a rotor.

To dissipate heat, a convection load is applied to all of the surfaces of the brake rotor except for the surfaces where the heat flux load is applied.

In an assembly model, use the Heat Generation command in the Thermal Loads group to define a heat power, heat generation, or heat transfer load for whole bodies. You can apply a heat generation load to bodies or components where another load already exists.

A heat generation load measures the rate at which thermal energy is transferred through a unit volume (a body or component). Typically, this heat must be conducted to the body boundaries and removed by convection or radiation heat transfer.

• Geometry—You can select bodies in an assembly. Use QuickPick to select individual components or design bodies within the assembly.



• Load distribution—You can select the Total Load option on the command bar to divide the load value among the entities, instead of applying the total load value to each entity.

• Value—Use the dynamic input box to specify the heat power per unit volume. For total loads, the default units are W. For distributed loads, the units are Power/Area (W/m³).

  A positive value indicates heat entering the model entity. A negative value indicates heat exiting the model entity.

A convection load measures the exchange of thermal energy when a gas or fluid moves from one surface to another surface or to its surroundings due to a temperature differential.

The Convection command in the Thermal Loads group defines a free convection load. Use a free convection load to evaluate heat transfer due to natural convection.

Free Convection

• Geometry—You can select faces, edges, corners, and features. You can apply the load to a mix of geometric entities by changing the Selection Type on the command bar.

• Values—Free convection loads require two values:

  • Film Coefficient—Also known as a heat transfer coefficient or a convection coefficient, this value represents the rate at which a fluid or gas transfers heat, such as when the top surface of a circuit board freely convects to its surroundings. The film coefficient is influenced by the density, viscosity, and velocity of the fluid or gas.

    The default units are derived from the units defined in the file properties, for example, 1 W/m²K. If you type the value using different units, they are converted to the default document units.

    Zero and negative values are not allowed.

    Example:

    Film coefficient values vary widely with the surface material that fluids and gases pass over or through. The following table illustrates the range of free convection values.

    Fluid or gas (free convection mode)	Application	Typical coefficient values (units)
    		(BTU / hr-ft²F)	(W/m²K)
    Air	Natural convection	N/A	5 to 25
    Air	Forced convection	N/A	20 to 300
    Air	Room to outside air transfer, through a typical glass window	0.1 to 0.5	0.5 to 2.5
    Water	Flow through a pipe	0.5 to 20	20 to 100
    Liquids	Liquids inside and outside tubes	18 to 176	50 to 100
    Gases	Gases at atmospheric pressure inside and outside tubes in a heat exchanger	0.2 to 3.5	2 to 25
    Boiling water	In a pool or container	440 to 6,200	2,500 to 3,500
    	Flowing through a tube	880 to 17,600	5,000 to 100,000
    Condensation of water vapor, at 1 atmosphere	Vertical surfaces	700 to 2,000	4,000 to 11,300

  • Ambient Temperature—Also referred to as surrounding or bulk temperature. Heat is convected to or from the surface toward the specified ambient temperature.

    The default value is 20 degrees Celsius. Zero and negative values are allowed.

• Options

  • You can specify advanced options for free convection loads in the Thermal Load Options dialog box.

  • You can change the default direction of a convection load using the Flip Direction button on the command bar. A convection load on a solid face or surface is applied in the positive normal direction by default. You can use the button to flip the load to the negative normal direction (the opposite side).

Thermal radiation is the heat transfer due to electromagnetic radiation emitted by the surface of a body. The heat transfer occurs when the emitted radiation strikes another surface or body and is absorbed, reflected, or transmitted to another entity.

Any body with a temperature above 0 degrees Kelvin emits radiation, as do all heated solids and liquids, as well as some heated gasses.

Use the Radiation command in the Thermal Loads group to apply either of the following radiation load types:

Radiation to Space

A radiation load that defines the radiant exchange between a face or surface and infinite (blackbody) space.

Enclosure Radiation

A radiation load that defines the radiant exchange among a group of surface elements.

Note:

Enclosure radiation loads in assemblies can transfer heat even when assembly connectors are not defined.

Examples of the two types of radiation include a camp fire (radiation to space) or a microwave (enclosure radiation).

The following information is required to define radiation loads:

• Geometry—You can use the Selection Type list on the command bar to specify the type of geometry you want to select, and then select individual faces or surfaces, entire features, edges, or points in the graphics window. If you are using a surface mesh, you may want to use the Edges/Corners option to select lines and points on the surface.

  Note:

  Radiation loads are not available for beam mesh types in structural frame models.

• Radiation Type and Radiation Values—Use the Radiation Load Options dialog box to choose the radiation load type (Radiation to Space or Enclosure Radiation), and to enter radiation load values (surface emissivity, absorptivity, ambient temperature, view factor, number of cavities or enclosures, and view factor).

  You can open the dialog box using the Options button on the Loads command bar.

  The default radiation load type is Radiation to Space.

  Note:

  When solving an enclosure radiation load applied to models with relatively small geometry and small mesh elements, the ZTOL option on the Radiation Load Options dialog box enables the study to solve without fatal errors.

  For example, use the ZTOL parameter to resolve fatal processing errors similar to the following:

  *** FATAL*** DIMENSIONAL LENGTH: 9.765587644E-12 IS SMALLER THAN "ZTOL": 1.000000013E-10 REASSIGN "ZTOL" ON VIEW3D BULK DATA TO BE SMALLER THAN THE DIMENSIONAL LENGTH.

• Load distribution—Radiation loads are distributed uniformly across the selected geometry.

• Body temperature load—This is required for all radiation loads. Use the Body Temperature command in the Body Loads group to specify a base temperature at any time before meshing. This ensures that all nodes and elements are assigned a default temperature, even when no load is specifically applied to them.

  See Body Temperature loads in the Structural and body loads help topic.

• Options—You can specify advanced options for enclosure radiation loads in the Thermal Load Options dialog box.

The commands in the Thermal Loads group also are used as thermal constraints in thermal studies. A thermal constraint applies a constant temperature to geometry or to nodes. The Temperature, Convection, Heat Flux, and Heat Generation loads can be used as thermal constraints to conduct heat across a model and to dissipate heat.
