Smart Dimension command bar

Sets options for dimensions placed with the Smart Dimension command. The options that are available depend upon the element you select and the type of dimension you are placing.

Format group options

Dimension Style Mapping

Specifies that the setting on the Dimension Style page of the QY CAD Options dialog box determines the dimension style.  When you set this option, Dimension Style is unavailable.

Dimension Style

Lists and applies the available dimension styles. This option is unavailable when Dimension Style Mapping is enabled.

Text Scale

Applies a scale value to the current text height. The default is 1.0.

Round-Off

Sets the round-off for the value. This option is sensitive to the unit setting (decimal or fractional) and contains values as appropriate for the unit. This option is also sensitive to the dimension being placed and contains values as appropriate for the dimension.

Advanced Round-off

Displays the Round-off dialog box for you to specify all round-off options in one location.

/ Driving/Driven Dimension

Changes the state of the selected dimension between driving (lock icon) and driven (unlocked icon).

• When you set a dimension to driving, its value controls the size, orientation, or location of connected sketch elements. Its dimension value is prevented from being changed when a connected face is moved or sized.

• When you set a dimension to driven, its value is controlled by the element it refers to, or by a formula or variable you define. When a dimension is driven, and faces connected to the dimensioned edge are modified, the dimension value is allowed to change.

If you want to set this option before you place a dimension, you must first select the Maintain Relationships command.

Properties group options

Dimension Axis

Sets the dimension axis for a dimension. This button is not available unless the Orientation option, Use Dimension Axis, is set. When you select the Dimension Axis button, you cannot place a dimension until you select a linear element that defines the dimension axis you want.

For more information, see Place a dimension using a dimension axis.

Orientation

Use this Orientation option	To place
Automatic	Dimensions based on the orientation of the element selected. This option is the default.
Horizontal/Vertical	Dimensions that are parallel or perpendicular to the horizontal edge of the drawing sheet or reference plane.
By 2 Points	Dimensions that are parallel or perpendicular to the theoretical line between the two points you are dimensioning.
Use Dimension Axis	Dimensions that are parallel or perpendicular to the element that you select as the dimension axis using the Dimension Axis option on the command bar. Use this option when the default horizontal or vertical axis is not appropriate for the geometry that you are dimensioning or when you want the dimensions to be placed in reference to a different element. After you select the dimension axis (1), the next dimension is placed parallel to the axis (2).

Length

Places a linear dimension for the following:

• The length of a line.

• The arc length of an arc.

• The horizontal or vertical distance between the end points of a line.



Note:

Before you place the dimension, and depending upon the number of elements selected, you can use the following keys to affect the dimension that is created:

Keyboard options	Result
A	Changes between a linear dimension and an angular dimension.
B	For PMI, changes the dimension orientation back to the previous dimension plane in sequence.
D	Changes between a radial or diameter or concentric diameter dimension.
I	For PMI, selects an intersection point.
N	For PMI, changes the dimension orientation to the next dimension plane in sequence.
Shift	For linear dimensions, alternates between: The horizontal or vertical distance between elements (A). The minimum distance between two points (B). For concentric diameter dimensions, specifies an angled orientation.
Alt	For a radial or diameter dimension, adds a projection line extension to the dimension. Default appearance With the Alt key
Q	Turns automatic locate off and on so you can select a different element to dimension to.

Note:

When modifying a horizontal or vertical dimension, use the F key to flip the orientation.

Angle

Places an angular dimension for the angle of a line or the sweep angle of an arc.

Radius

Places a radial dimension for the following:

• Arc

• Circle

• Ellipse

• Curve



Note:

• Before you click to place the dimension, you can use the D key to change from a radial dimension to a diameter dimension, and from a diameter dimension to a radial dimension.



• After placing a radial dimension inside an arc or circle, you can drag the edit handle on the extension line to lengthen or shorten it.



Diameter

Places a diameter dimension for an arc or circle.

Concentric Diameter

Places a group of diameter dimensions on concentric circles and arcs. Concentric diameter dimensions are stacked, aligned and spaced automatically during placement and editing. For more information, see Place concentric diameter dimensions.

Tip:

You can control how dimension text is arranged in the concentric diameter dimension stack. You can set the option, Alternate text positions, on the Lines and Coordinate tab in the Dimension style, and you can modify it for a selected dimension in the Dimension Properties dialog box.

Diameter Normal

Measures the diameter of elements in the normal plane. This option is available when placing PMI dimensions.

Tangent

Specifies that you want to place the dimension tangent to the selected elements. When you place a tangent dimension, QY CAD uses the tangent point on the element closest to the selected point.

• If you select only one of two elements for a tangent dimension, the dimension is placed from the keypoint of the non-tangent element to the tangent of the element closest to where you click.

• If you select both elements for tangent dimensions, the dimension is placed from the tangent point closest to where you click each element. In either case, if necessary, QY CAD extends the element to preserve this relationship.

• If you select two keypoints with the Tangent button depressed, the keypoints take precedence and a tangent dimension is not placed.

Note:

You can use the T key on the keyboard to activate the Tangent option.

Counterclockwise

Changes the dimension from a clockwise to a counterclockwise measurement from the origin. This option is available for angular coordinate dimensions only.

Major/Minor

Displays only the major (A) and minor (B) angles when set.

When this option is cleared, you can choose between four placement options (quadrants) for angular dimensions.

This option is disabled for chained and stacked dimensions.

Jog

Places a jogged projection line on a radial or diameter dimension.

When editing a selected dimension line or dimension projection line with jogs in it, removes all jogs at once.

Note:

You can use Alt+click to add jogs to the parallel projection lines on linear dimensions, coordinate dimensions, symmetrical diameter dimensions, and circular diameter dimensions.

For more information, see the help topic, Adding jogs to dimension projection lines.

Diameter-Half/Full

For diameter or symmetric diameter dimensions, changes the display between half and full.

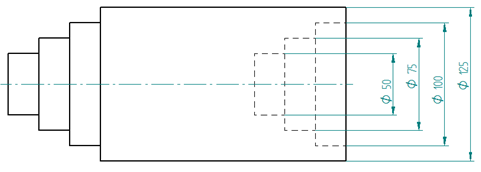

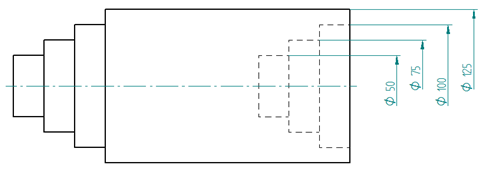

Half	Full
Note: For a half diameter display, you can use the Extension option in the Projection Line section of the Lines and Coordinate tab (Dimension Style and Dimension Properties dialog box to specify the initial amount that the dimension line extends beyond the center of the circle.
Note: For stacked symmetric diameter dimensions, you can use the Alternate text positions option on the Lines and Coordinate tab (Dimension Style and Dimension Properties) dialog box to alternate the position of the dimension text in the stack, as shown in the image above.

Tolerance group options

Dimension Type

Specifies the dimension type. You can choose from the following dimension types.

Nominal
Tolerance (unit)	Enter a numeric tolerance value in specified units. Example: You can type 1/8, and it converts to .125. You can enter values in degrees-minutes-seconds. Note: You can type the tolerance values in the upper and lower boxes, and use the + and - buttons to specify that the values are positive or negative. You can specify Tolerance (unit) layout and justification on the Units tab and the Secondary Units tab in the Dimension Properties dialog box.
Tolerance (alpha)	Enter an alphanumeric string.
Class	Note: You can type the tolerance values in the Upper Tolerance and Lower Tolerance boxes.
Limit	Note: You can type the tolerance values in the upper and lower boxes, and use the + and - buttons to specify that the values are positive or negative.
Basic
Reference
Feature Callout
Blank

Inspection

Adds an inspection bubble around the dimension text.

Prefix

Opens the Dimension Prefix dialog box for specifying prefix, suffix, superfix, and subfix information.

You can use the Saved Settings list, which is circled in the following image, to quickly select and apply dimension prefix information to new dimensions or to modify the text in existing dimensions.

Enable Prefix

When selected, displays the dimension text specified in the Dimension Prefix dialog box on the next dimension you place or on a dimension you are editing.

When cleared, hides the prefix content.

Upper Tolerance

Sets the primary upper tolerance value. This option is available for tolerance, class, and limit dimension types.

Lower Tolerance

Sets the primary lower tolerance value. This option is available for tolerance, class, and limit dimension types.

Upper Tolerance Sign (+)/Lower Tolerance Sign (-)

By default, the Upper Tolerance box displays the positive upper tolerance value, and the Lower Tolerance box displays the negative lower tolerance value.

• You can use the Upper Tolerance Sign (+) button and the Lower Tolerance Sign (-) button to specify whether the tolerance value in the box is a positive value or a negative value. Selecting either button changes it from + to -, and from - to +.



• Another way to change the values from positive to negative is to type a - or + in the box and then use the Tab or Enter key to update the dimension value. This does not change the state of the button on the command bar.

• You can format the unit tolerance values using the options on the Units tab and the Secondary Units tab in the Dimension Properties dialog box.

Type

Specifies the class type when the Class dimension type is selected. You can choose from the following options.

Fit
Fit, tolerance only
Fit with tolerance
Fit with limits
Fit Hole/Shaft only
Fit Hole/Shaft, tolerance only
Fit Hole/Shaft with tolerance
User-defined (Any user-defined text is valid)

For more information, see Fit dimensions.

Class (Fit)

Sets the tolerance class for user-defined fit dimensions. You can type any text in the box.

This option is available only when the Dimension Type is set to Class, and the Class Type is set to User-defined.

Hole

Sets the tolerance class for a hole. This option is not available for the Class Type=User-defined.

Shaft

Sets the tolerance class for a shaft. This option is not available for the Class Type=User-defined.

Note:

You can change the formatting of class fit type dimensions and tolerance type dimensions using the options in the Tolerance Text section of the Text tab (Dimension Style and Dimension Properties) dialog box. For example, you can specify a slash or a horizontal separator; how to align the numbers (to the + or - sign or the decimal point); and whether to use a degree symbol.

Other group options

Set dimension plane

Sets the active dimension plane for the creation of PMI dimensions and annotations. The dimension plane controls how dimension values are calculated and how the dimension text is displayed.

Lock dimension plane (F3 to unlock)

Lets you specify a dimension plane by clicking a planar face or reference plane. The plane remains locked until you unlock it by pressing F3.

Keypoints

When placing a PMI model dimension, you can select the type of keypoint to dimension to. The default 3D keypoint filter option, , selects only the centers of circles and arcs or endpoints of edges. Use this option to place a dimension that you want to use to change the model.

Smart Dimension command

Example: Dimension the length of a line
