Add and remove jogs on a dimension

You can add and remove jogs on the projection lines of 2D dimensions.

Choose the Select command .

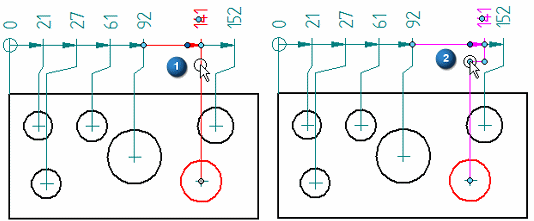

To insert a jog, do the following:
1. Select an existing dimension (1) to display the dimension edit handles.
2. Position the cursor over the dimension projection line where you want to insert the jog, and Alt+click (2).

  A jog segment is inserted.

  Example:

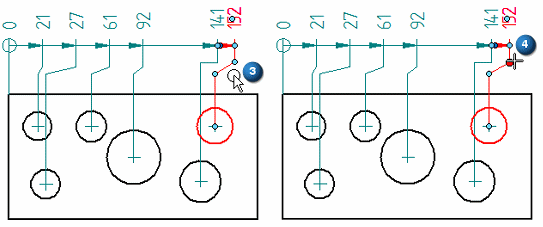

To adjust the position of a jog segment, do the following:
1. Select a dimension with a jog segment (3).
2. Drag the handle to reposition the jog (4).
3. Click in space to update the dimension.

Tip:

You can remove a jog by doing this:
1. Select the dimension.
2. Alt+click the dimension jog handle.
You can add multiple jogs to a dimension projection line.
You can remove all of the jogs on an existing dimension using the Jog button on the Dimension command bar.
