Format accuracy round-off in hole tables

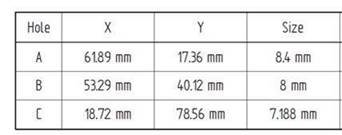

When you place a hole table in draft, you now can set different accuracy round-offs on different holes based on application requirements. For example, dowel holes may require a finer round-off compared to threaded holes.

• Previously, a single round off was applied to the entire column, as it is a property of all cells in the column.

• Now you can change the formatting for hole size round-off, units, and tolerance on one or more individual cells. You can do this using the Format Values dialog box, which you can open from the context menu in direct edit mode,

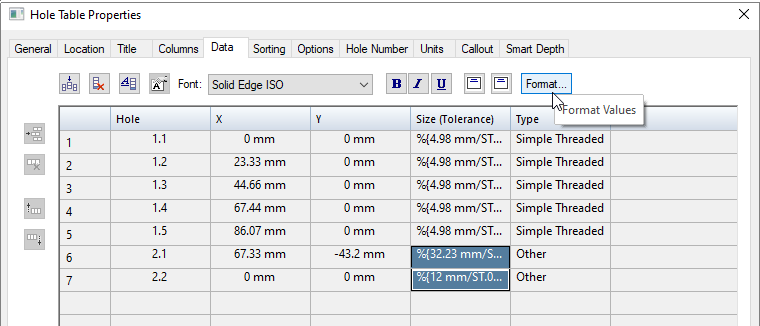

  Or by selecting the Format button on the Data tab in the Hole Table Properties dialog box:



For more information, see Hole tables and Editing a table directly.

---
