Match Coordinate Systems enhancements

Enhancements to the Match Coordinate Systems command include:

• Use the new Single Coordinate System Constraint option on the Match Coordinate Systems command bar to create a match coordinate system as a single relation.



  This provides a quick and easy edit method and is useful when editing and redefining the coordinate system. This relationship is supported in family of assemblies, Assembly Relationship Manager, and Relationship Assistant.

• You can suppress and unsuppress match coordinate system relationships.



• You can add a suppression variable for match coordinate system relationships. Any changes you make to the variable are reflected in PathFinder.

• You can see the relationship status and any failed error state in Assembly Relationship Manager.

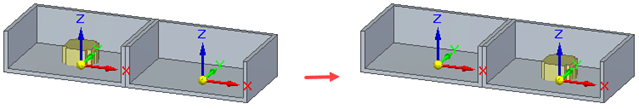

• Right-click the Match coordinate system relationship and use the Edit Definition command to match the part to a different coordinate system.



  For more information, see Edit a Match Coordinate Systems single relationship.

---
