Move or edit a louver


In the ordered environment, you can edit the louver parameters to change such things as the height or depth of the louver.

In the synchronous environment, you can move a louver along the face or edit the louver parameters to change such things as the height, length, or depth of the louver.

Edit louver parameters in the ordered environment

  1. Select the louver.

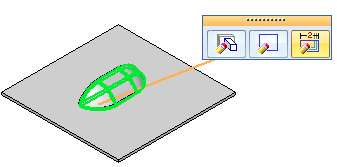

  2. Select the Dynamic Edit button

  3. Click a dimension.

  4. Type a new value and click Enter.

  5. Click to save the change.

Move a louver

  1. Select the louver.

  2. Click the steering wheel axis shown.

    .

  3. Drag the louver to a new location.

  4. Click to save the edit.

Edit louver parameters in the synchronous envirnonment

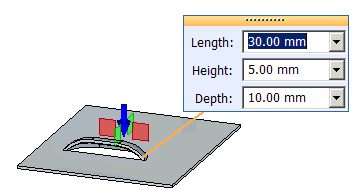

  1. Click a louver to display the edit handle.

  2. Click the edit handle.

    The command bar and parameter edit box are displayed.

  3. Type a new value for the parameters.

  4. Click to save the edits.
