Tube command

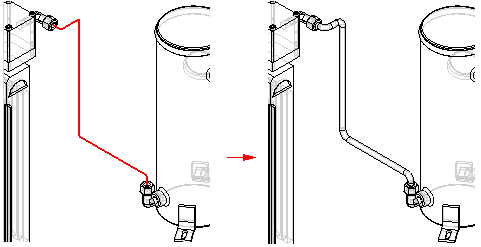

Use the Tube command to create a tube part that contains a tube feature derived from a selected path. The path must be a contiguous set of end connected segments.

Note:

To access the Tube command you must be in the XpresRoute environment.

Choose Tools tab→Environs group→XpresRoute .

Creating the tube Tube command bar
