Constructing louvers

Like a jog feature, a louver feature is constructed using a single, linear element.

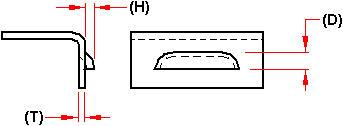

When constructing a louver, the louver height (H) must be equal to or less than the louver depth (D) minus the material thickness (T).

You can also specify whether you want the louver ends formed (A) or lanced (B) using the Louver Options dialog box.

Louver features cannot be flattened.

---
